Order Routing Templates

Using the Order Routing Templates, you can now see a build being created across multiple lines directly from the Operator Portal.

This feature can only be enabled by L2L Support. Once enabled, follow the setup instructions below:

1. Navigate to Production > Order Routing Templates > Add New +
   • Provide the template a Name to describe the process it represents
   • Choose the Product the template represents
   • Identify, if desired, any specific background and font colors that should be applied to orders created from the template via the Override settings
   • If needed, enter any additional details regarding the process the template represents into the Description
   • If a Barcode should be applied to orders created from the template, select the barcode Format and enter the necessary Data
   • Save

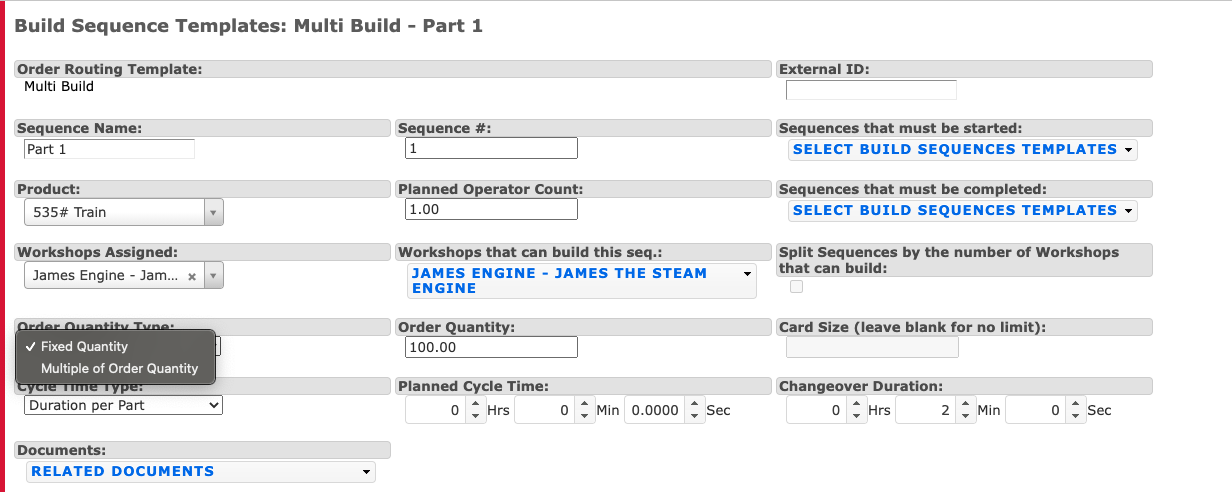

2. Select the created Order Routing Template > Add Build Sequences
   • If there is a designated order the build needs to occur in, use "Sequences that must be Completed" to set dependencies.
     • Sequences That Must Be Started - these Sequences must be started before the current Sequence can begin
     • Sequences That Must Be Completed - these Sequences must end before the current Sequence can begin
   • Fixed Quantity - the sequence will always use the set amount

     • If the sequence is using Fixed Quantity, Split Sequences and Card Size become disabled. Create two build sequences if there's a need to split a fixed quantity build sequence.



   • Multiple of Order Quantity - if a multiplier is entered, the amount on the Product Order will be multiplied by that amount for the Build Sequence. Increments of 0.5 are possible.
     • Ex) A multiplier of 2 and a Product Order quantity is 100, the Build Sequence will be for 200. Furthermore, if you select a multiplier of 2, have 2 lines that can build, and an order quantity of 100, the Build Sequences will be 100 for each line.
   • Split Sequences by the Number of Lines that can Build (Note: This must be enabled by L2L Support. If you are not seeing multi lines on your operator portal queue, this feature needs to be turned on). - if two lines that can build the sequence have been specified and Split by Sequences checked, creating a Product Order from the template will generate a two sequences - one for each line that can build. Additionally, the the template sequence quantity will between the two lines.
     • Ex) A multiplier of 2 and a Product Order quantity is 100, the Build Sequence will be for 200. Furthermore, if you select a multiplier of 2, have 2 lines that can build, and an order quantity of 100, the Build Sequences will be 100 for each line.

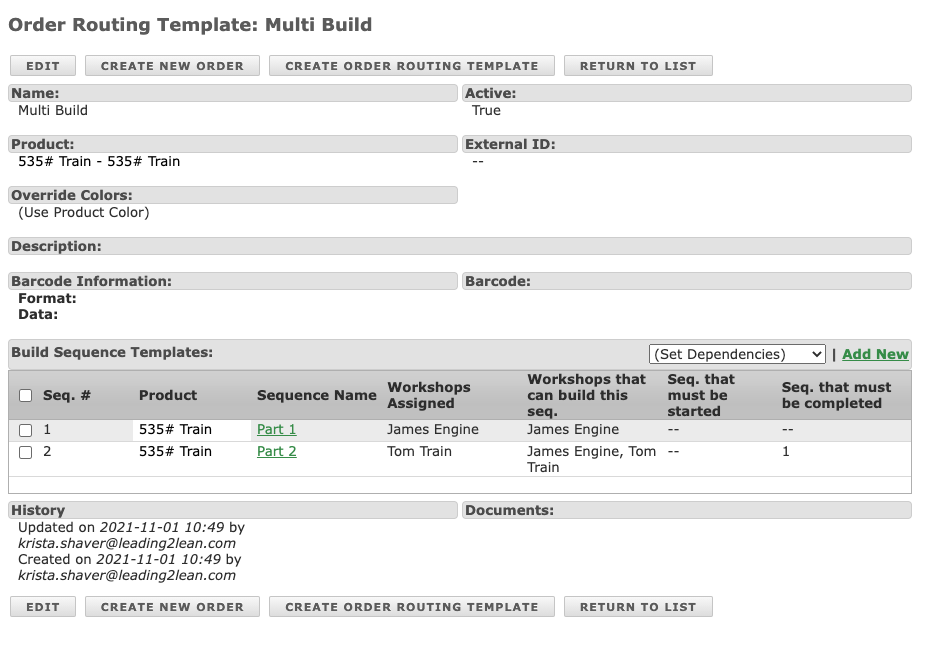

3. Once Build Sequences have been added, return to the Order Routing Template page

   • Use the "Built Quantity Calculation Method" setting from the Order Routing Template to set the "Built Quantity Calculation method" setting on orders from the template

     • If the Product Order's "Built Quantity Calculation Method" is "All Parts", the Product Order's Build Quantity will increment when the Built Quantity is incremented on any Build Sequence

     • If the Product Order's "Built Quantity Calculation Method" is "Parts from Build Sequence(s)", the Product Order's Build Quantity will only increment when the Built Quantity is incremented on the selected Build Sequences from the Parts from Build Sequence(s) selection
4. The template can now be used to create a Product Order. This can only be done manually or via API
   • Select "Create New Order" at the top or bottom of the Order Routing Page
   • Enter the specific details for the order to be created
     • Identify the specific order Name
     • Select the Status the order should be created as
     • Choose what Product the order should be created for, or the particular product that should be applied to certain steps
     • Enter the Scheduled and Due Dates for the order
     • If needed, select an Override Background and Font color to be applied to the individual order
     • Specify the Order Quantity
     • Add any further Description for the unique order, if required
     • If used, fill in the Format and Data for a barcode for the order
     • Save

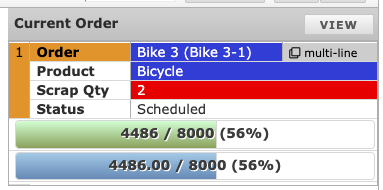

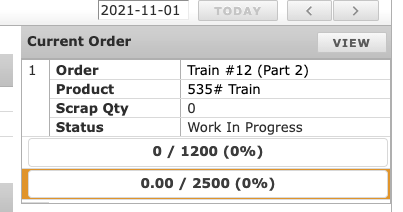

Once the order is started on the Operator Portal, it will  appear as follows in the Current Order widget:

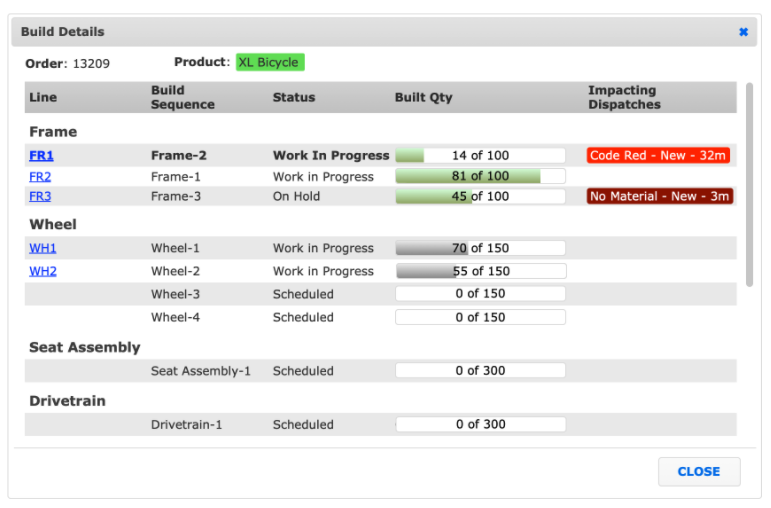

If you want to see the entirety of the order as to where it is at in the process, you can click on the 'Multi-line' button on the Current Order and it will bring up a new screen with the information.
