Machine Dashboard
Last updated: June 19, 2026
A Dashboard for the Machine!
The Machine Dashboard provides a central view of machine status, open dispatches, and related machine information for maintenance teams and other users.
Here are just a few of the things you'll be able to see and do, quickly and easily, directly from the Machine Dashboard:
Machine Status (Up/Down, and for how long)
Currently open Dispatches
Create a new Dispatch
View the Machine Image
Availability Trend
MTTR
MTBF
Downtime/Labor/Spares Costs
Top Dispatch Types
Top Reason Codes
Top Actions/Components
Top Spares Requests
Where:
Link to the Machine Landing Page (MLP) from the Dispatch Portal
Direct navigation by scanning QR code (attached to Machine)
Drill-down from the Maintenance Dashboard
Link from the Machine Detail Setup Screen
*Admins can see a Cog Wheel that will take you to the Machine Setup page.
Example Use Cases:
Manager: I’m walking by a Machine and notice that it’s not running. I scan a QR code that’s posted on the Machine and pull up a screen that shows me everything about the Machine.
Operator: I’m running one or more lines. A Machine goes down. I walk up, scan the Machine, and launch a new Dispatch for a Machine repair.
Technician: I get assigned a Dispatch to fix a Machine. I walk up to the Machine, scan the QR code, Dispatch myself to the Dispatch. I can then perform research on the Machine to see what work has been performed recently, what Spare Parts were used recently, and what recent fixes were performed: all in order to better prepare myself to fix the Machine. And I can do all of this really fast!

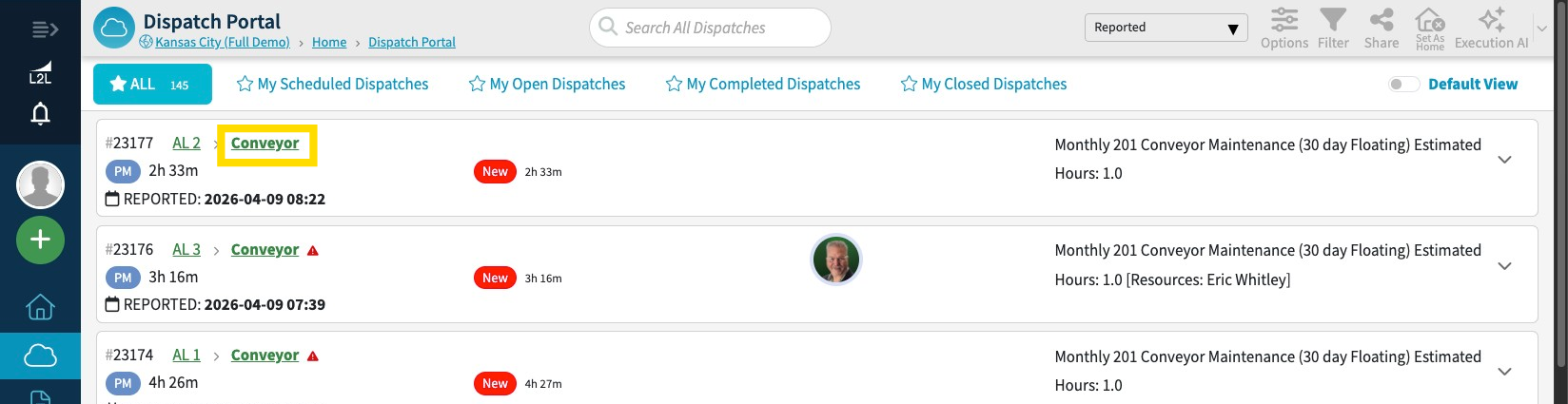

Open the Dispatch Portal to find the dispatch you want to review, then select the machine link to open its Machine Dashboard.
Click right on the Machine link

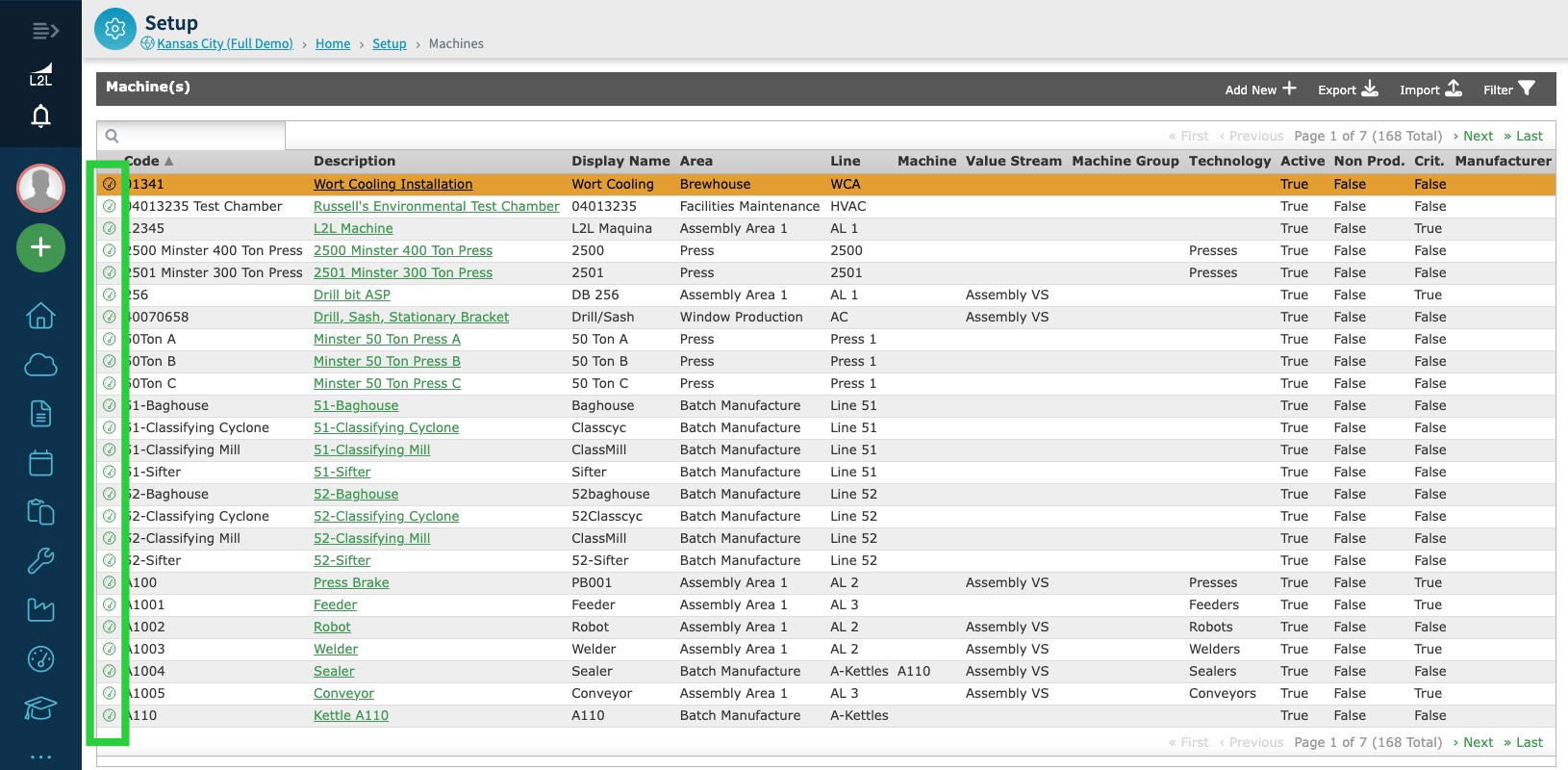

You can also go to Setup > Machines and select a machine from the list to open its Machine Dashboard.
Click on the Dashboard icon right next to the Machine Code

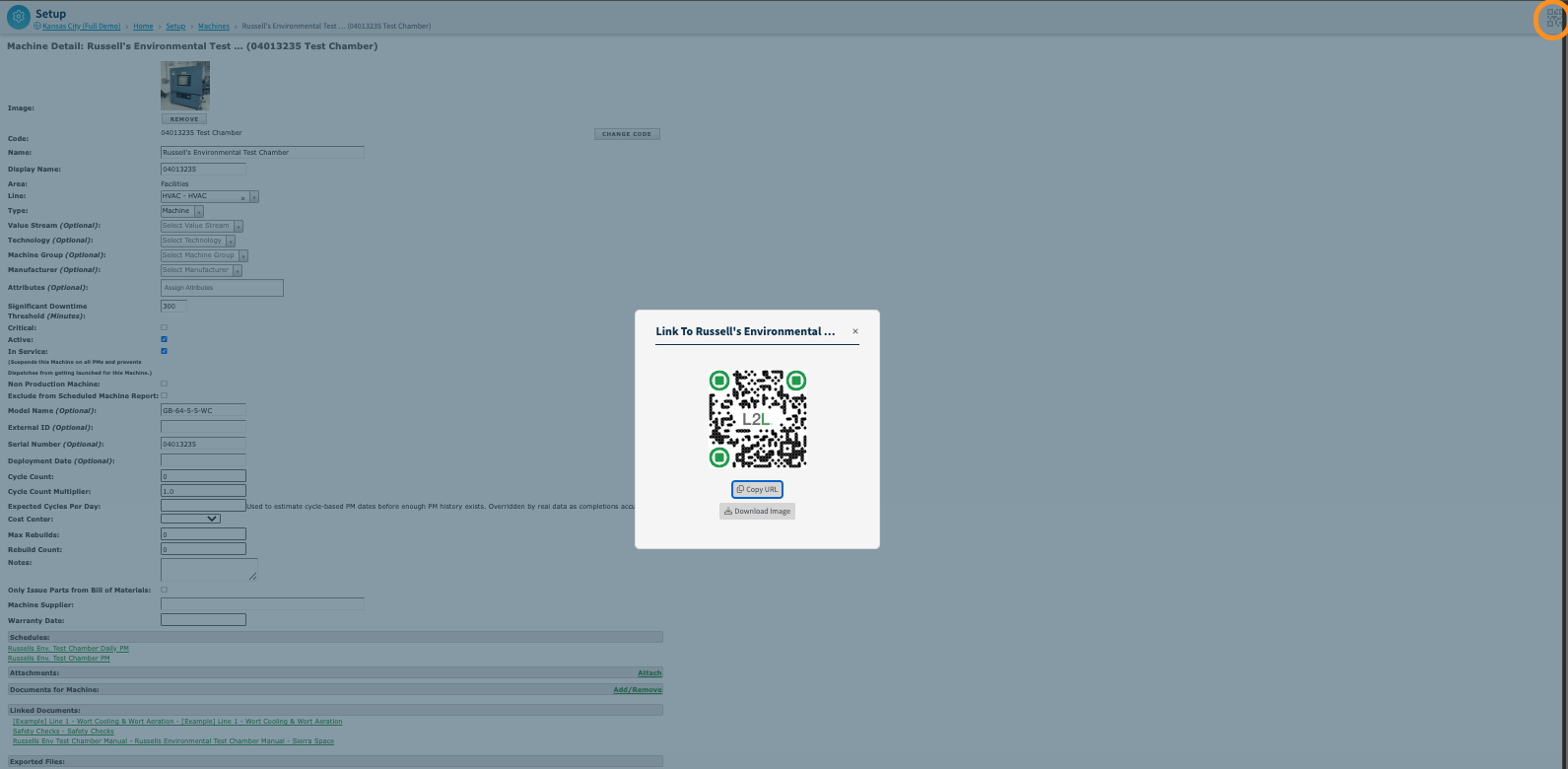

Use the QR code icon in the top-right corner of the Machine Dashboard header to open the machine QR code modal, where you can copy or download the code.

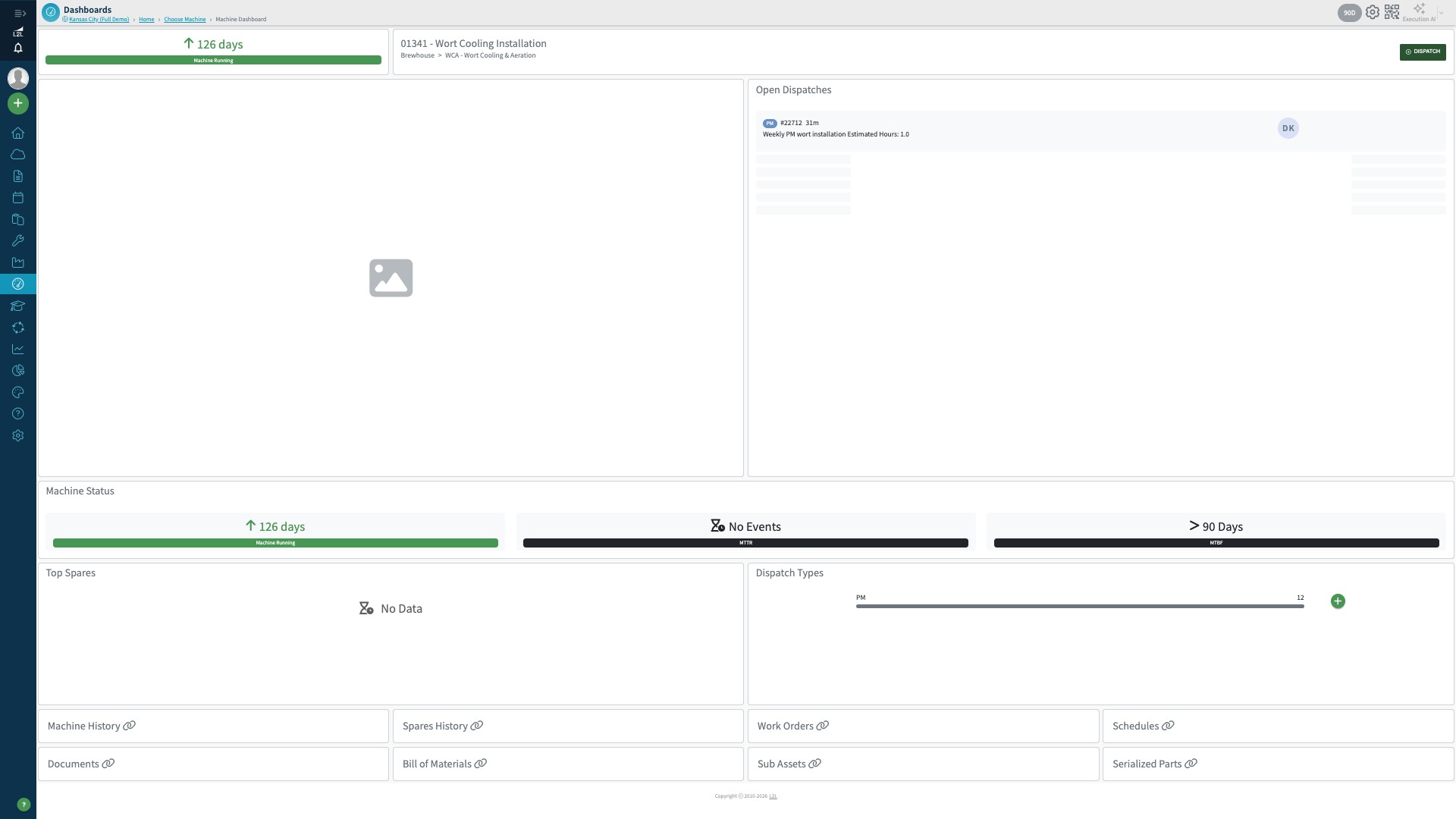

Clicking on the Dashboard icon will open the Machine Dashboard, where you can:
See the Current Status of the Machine (Note: if the Machine has not had a down dispatch, it will show as Machine Up since the deployment date listed in the setup page)
View recent Dispatches
Create a new Dispatch + Dispatch button
See the Top Spare Parts
See what Dispatch Types have been launched against this Machine
Links to:
Dispatch History, Machine History
Spares History
Work Orders
View Previous Work Orders
Create a new Work Order
Scheduled Events
View, open, edit related Schedules
Add or create a new schedule
Documents
Look up associated documents
Add or create a new document
Bill of Materials
Bill of Materials
View Parts List
Add or Remove parts from the Bill of Materials




*Admins can see a Cog Wheel that will take you to the Machine Setup page.
Machine Setup page

Check out this guided tour of the Machine Dashboard. Clicking here will give you the Mobile tour.
