The OEE Dashboard (OEE Drill Down) is a quick way to view the OEE for your site across a week or month time frame. The dashboard is also useful to compare the OEE of all sites within your company in one location.

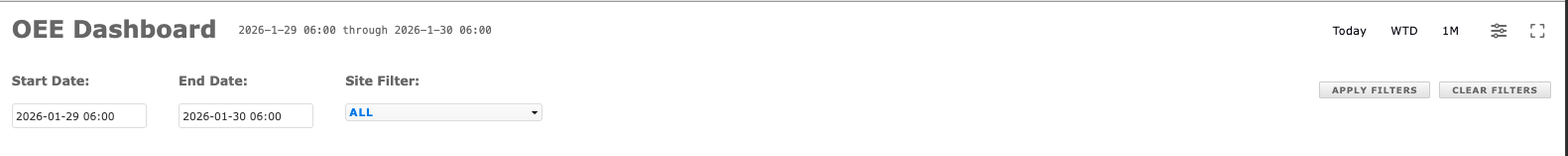

You'll notice 'Filters' at the top of the page. The filters allow you to select or unselect sites that you don't wish to see in the Overall metric. The filter also lets you select a date range. Notice you can't go back more than 1 month. Additionally, once you have drilled down, you can use the arrow up to go back to the upper level (Drilled down to Lines, Arrow brings you back up to Areas)

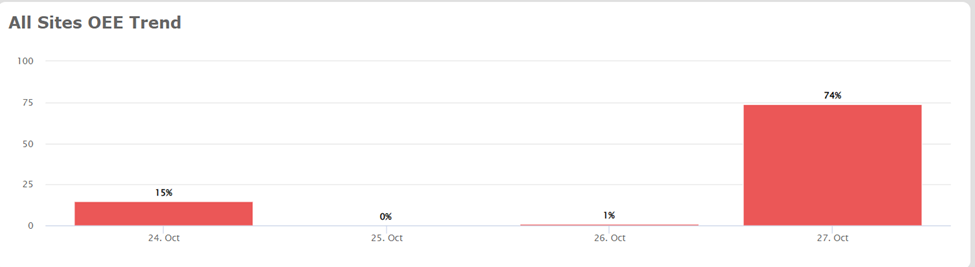

Next, you'll find the OEE trend. The trend chart shows a week to week or day to day comparison of OEE for all sites or for the specific site you are drilled into.

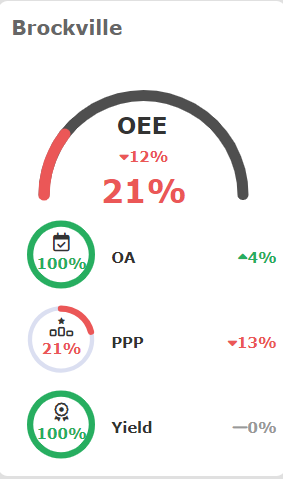

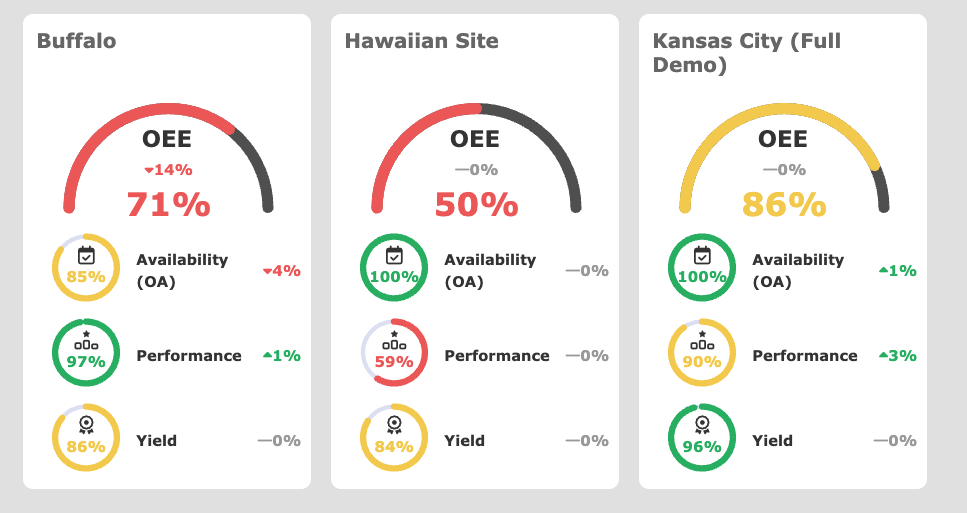

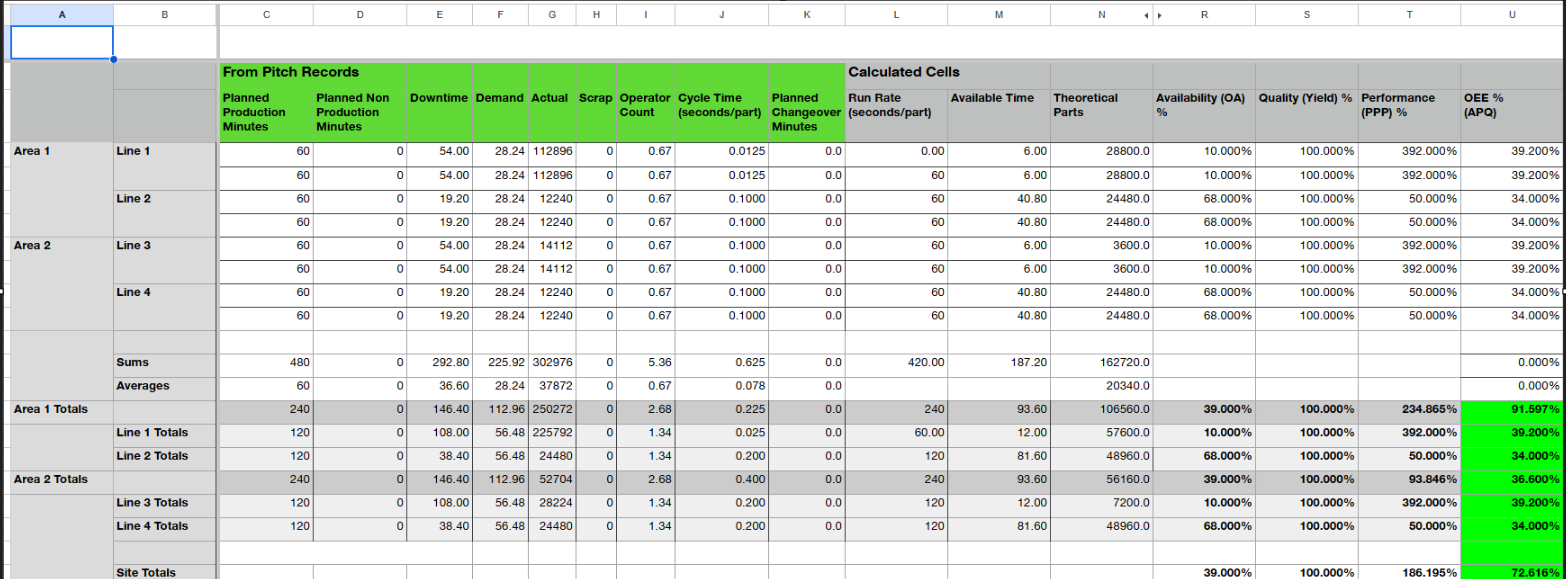

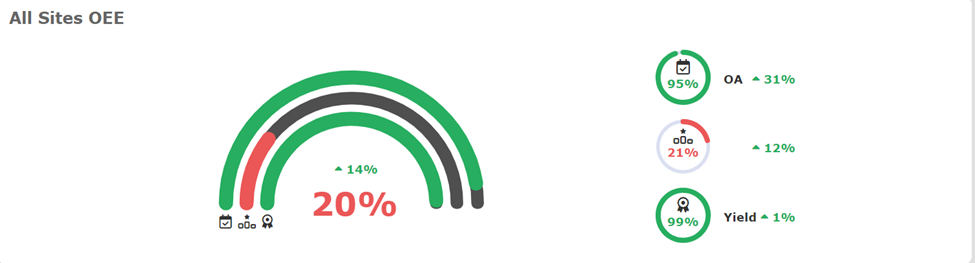

The OEE metric is calculated using Availability, Quality, and Performance. The Dashboard gives you a glimpse at each of these metrics as well as the Overall OEE for all sites within your company. You can click into the Site and Area and Line.

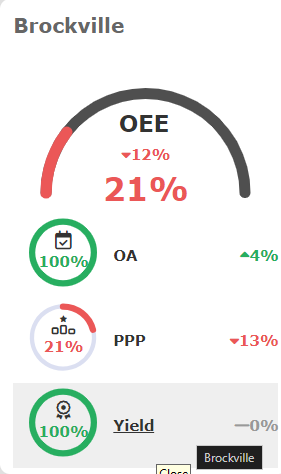

From the Site, Area, or Line level; you can drill into each of the metrics to pull up a Report in another window.

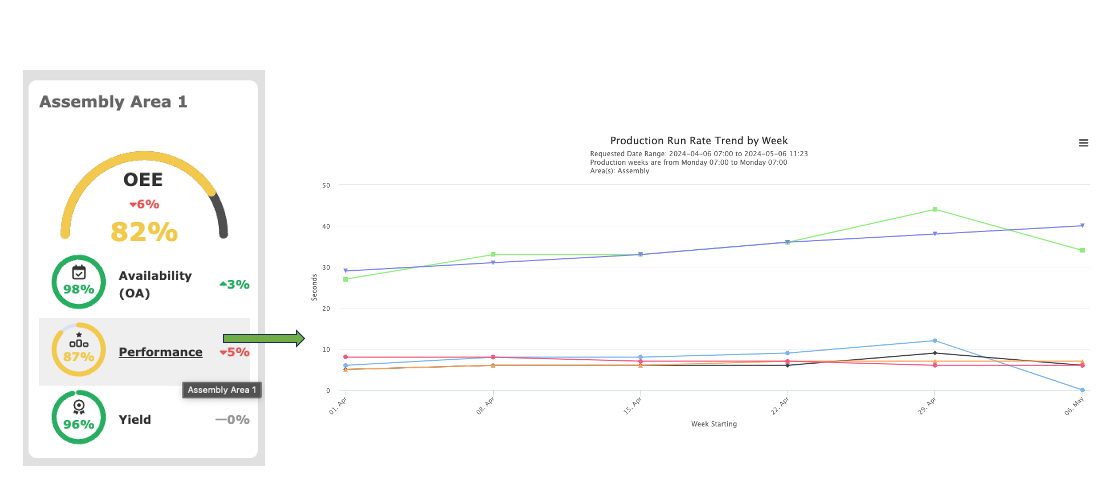

The Performance metric will pull up the Production Run Rate Trend. Click here for more information on the Performance metric.

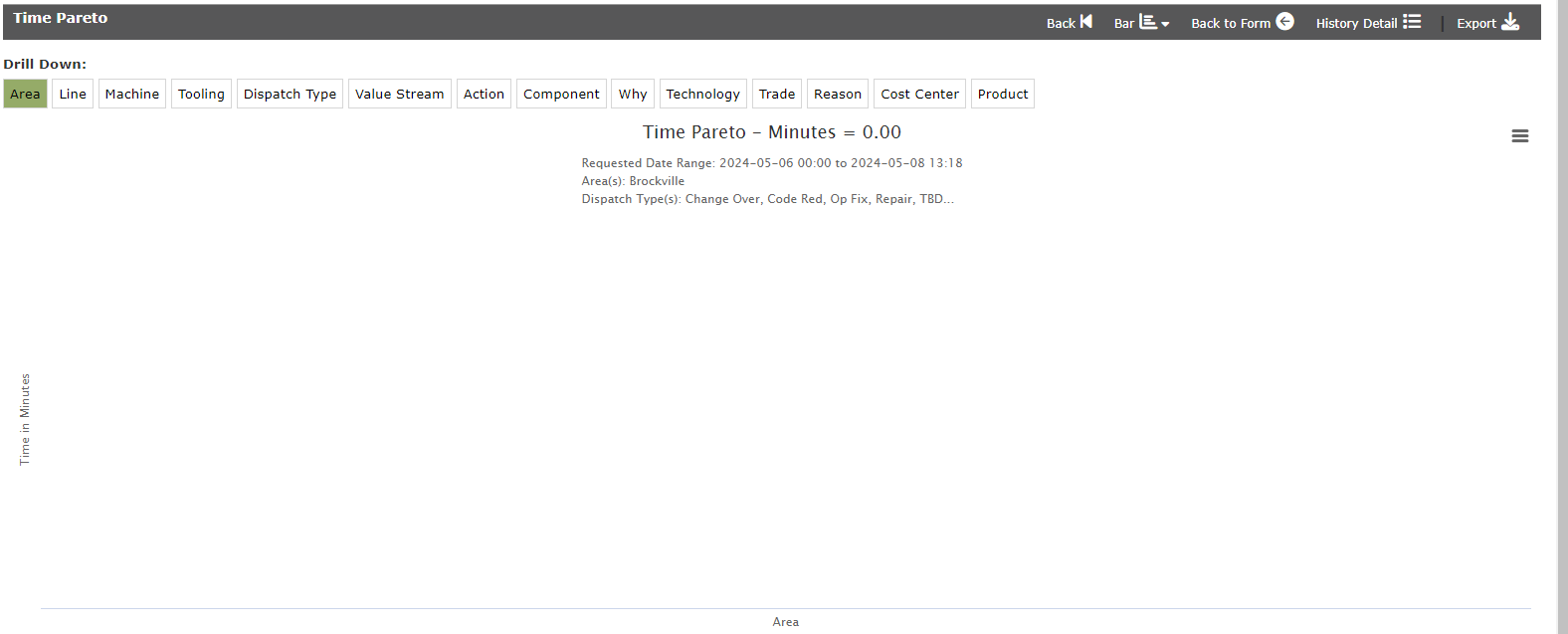

The OA Metric will pull up the Time Pareto Chart. Click here for more information on the OA Metric.

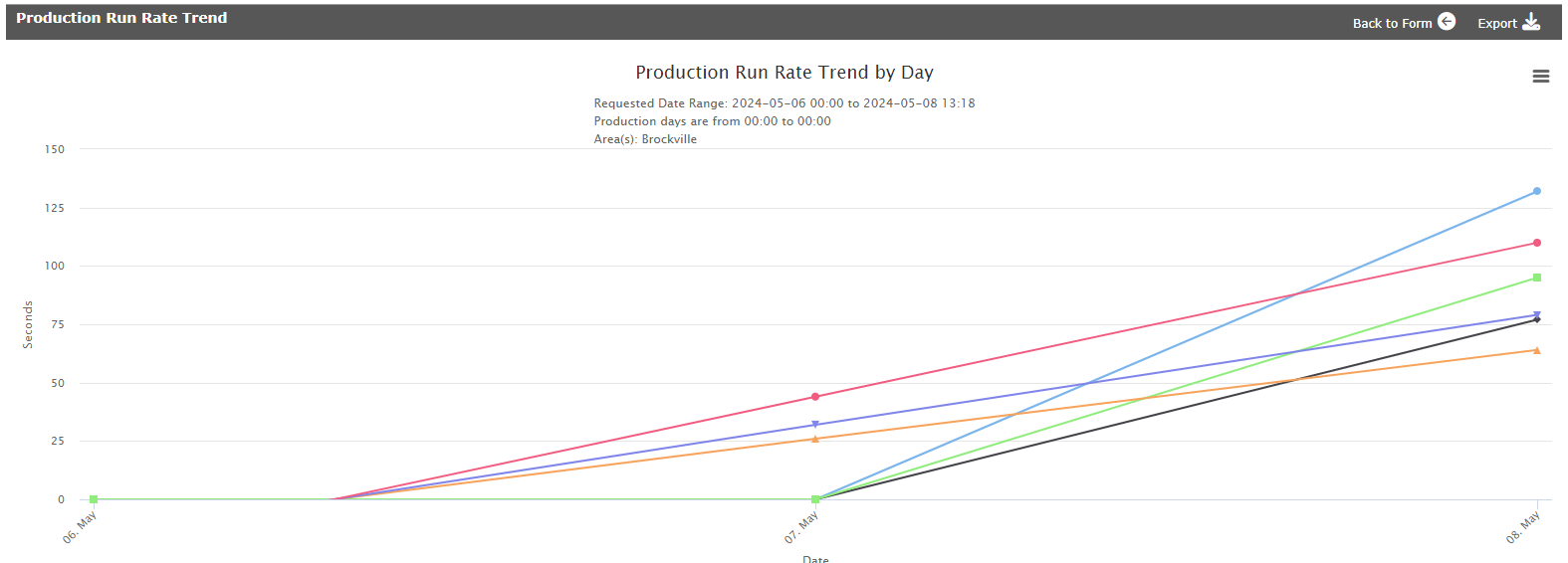

The Yield Metric will pull up the Production Run Rate Trend by Day. For more information on the Quality/Yield Metric click here.
Note: Metrics may appear off if; 1. You don't have threshold standards implemented across all sites. 2. Production start-up times differ for sites across the globe.
Troubleshooting: If you can't see the OEE dashboard for your site; 1. You must be using the Production Module.
